Silofab Storage Silo – SPG35
The SPG35 series offers modular silos designed for quick assembly, low maintenance, and cost-efficient shipping, fully compliant with safety and structural standards for powder and granular storage.
SPG35 is a range of 3,500mm diameters silos made up of modular segments for on-site assembly. Designed for economic shipping, SPG35 silos require short assembly time and minimum maintenance ensuring a significant cost reduction.
The SPG35 series design complies with all relevant regulations in force regarding safe storage of any type of powdery or granular material used in storage and processing plants.
Features
- Pre-equipped for several types of venting filters, outlet valves, cone aeration systems, level and pressure monitoring devices.
- Packing designed to minimise shipping costs.
- Silos designed and engineered according to the standards in force related to wind, snow and seismic activities.
- Large variety of application layouts, scaffolding supply, flooring and lifting kit.
- Large numbers of items available from stock.
- Certified products provided with all necessary technical documentation.
- Modular system that simplifies shipping, installation and dismantling.
- International distribution and service network.
- Attractive price and delivery time.
- Carefully selected materials and industrial manufacturing processes result in a high-quality product in the tradition of artisan expertise.
Applications
- Concrete Production
- DryMix
- Building Materials
- Asphalt Plants
- Sludge Treatment
- Foundries
- Glass Processing
- Paint Production
- Flour Milling
- Rice Milling
- Lime & Gypsum Processing
- Refractory Processing
- Brick & Roof Tile Production
- Ceramics Production

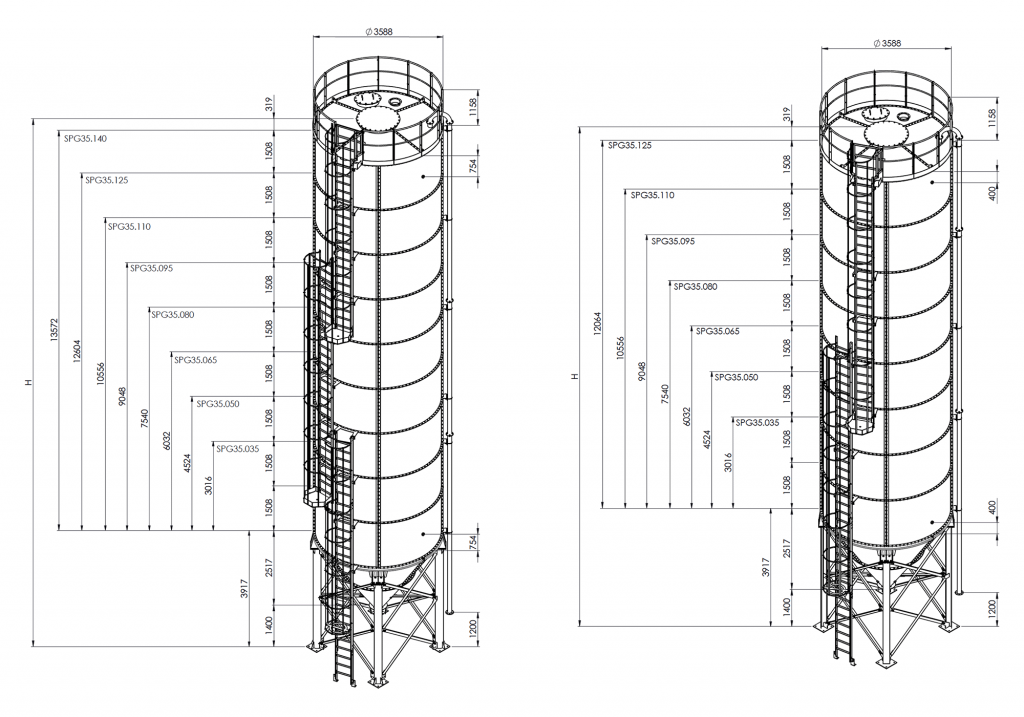

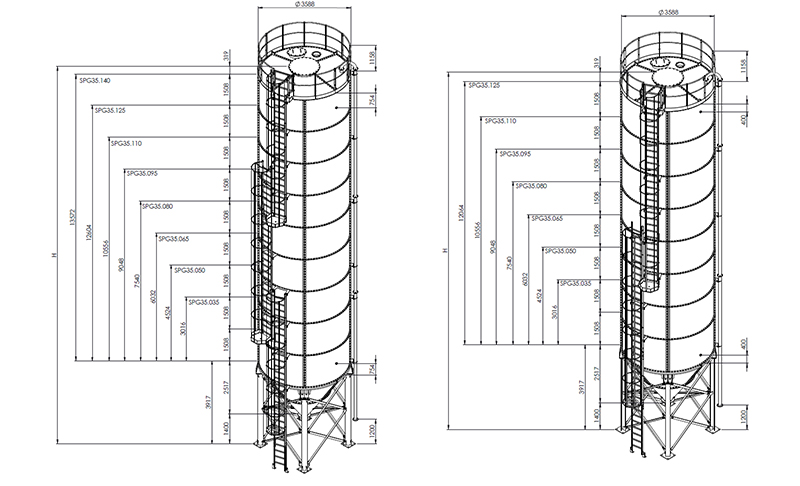

| Type | Silo Capacity (m3) | Ferulles (qty.) | Panel (qty.) | Total Height (mm) | Net weight (kg) Seismic Zone ZS1 (0.40g) | Net weight (kg) Seismic Zone ZS2 (0.25g) |
|---|---|---|---|---|---|---|
| SPG35.020 | 20 | 1 | 4 | 5744 | 3907 | 3049 |
| SPG35.035 | 35 | 2 | 8 | 7252 | 4608 | 3540 |
| SPG35.050 | 50 | 3 | 12 | 8760 | 5425 | 4040 |
| SPG35.065 | 65 | 4 | 16 | 10268 | 6194 | 4672 |
| SPG35.080 | 80 | 5 | 20 | 11776 | 7021 | 5225 |
| SPG35.095 | 95 | 6 | 24 | 13284 | 7720 | 5944 |
| SPG35.110 | 110 | 7 | 28 | 14792 | 9065 | 6631 |
| SPG35.125 | 125 | 8 | 32 | 16300 | 9757 | 7181 |
| SPG35.140 | 140 | 9 | 36 | 17808 | 11497 | n/a |
