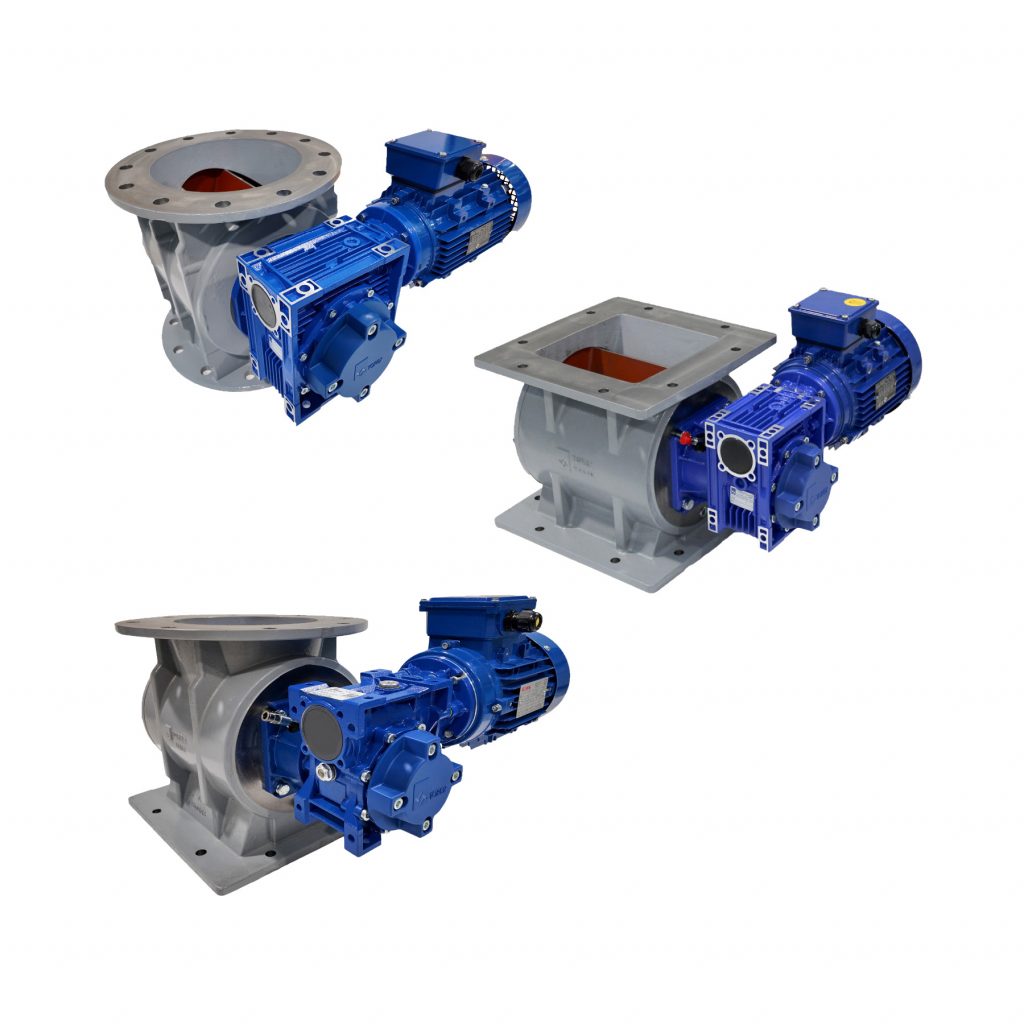

Torex Drop-Through Rotary Valves RV – RVR – RVT
RV/RVR/RVT Rotary Valves are the ideal solution for controlled discharging and feeding of powdery or granular materials from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones.
RV, RVR and RVT Drop-through Rotary Valves provide an ideal solution for the controlled discharge and feeding of powdery or granular materials from silos, hoppers, pneumatic conveying systems, filters or cyclones.
With a wide range of models and finishes available, these rotary valves are perfectly suited to diverse industrial applications, ensuring reliable and efficient material handling.

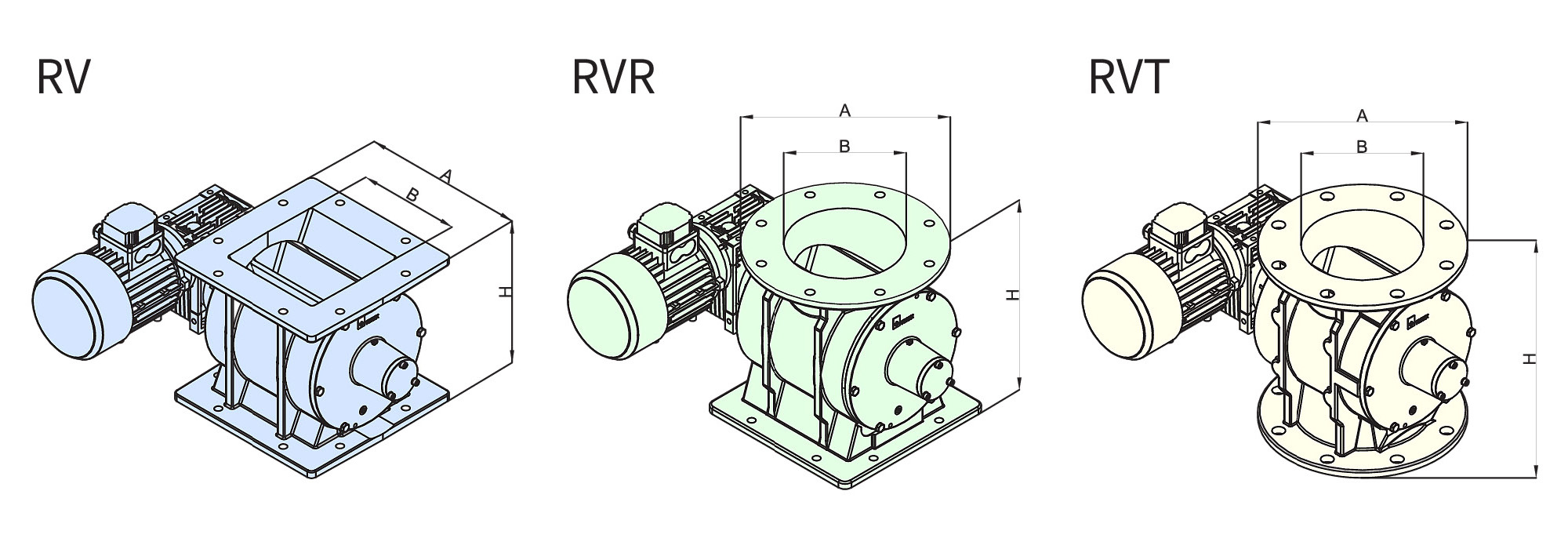

RV Drop-Through Rotary Valves with square and RVR/RVT with circular inlet consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of V-shaped cross section compartments, a drive unit and a casing cover opposite the drive end.
Features
- Feed rates: 2.2 ~ 19.5 litres per revolution (0.08 ~ 0.7 cu ft per revolution)
- Working Temperature: -30 ~ 150 °C (-22 ~ 302 °F)
- Different drives for different rotation speeds
- Various materials and treatments available depending on material handled
- Maximum differential pressure: 0.2 bar (2.9 PSI)
Benefits
- Compatible with other WAMGROUP equipment thanks to WAM standard flanges
- Maintenance-friendly
- Robust, compact design
- Suitable for nearly all kinds of bulk solids
- Easy access to all internal mechanical components
Industries
- Chemical Processing
- Feed & Food
- Pneumatic Conveying Plants
- Quarry & Mining
- Dry mix Processing
